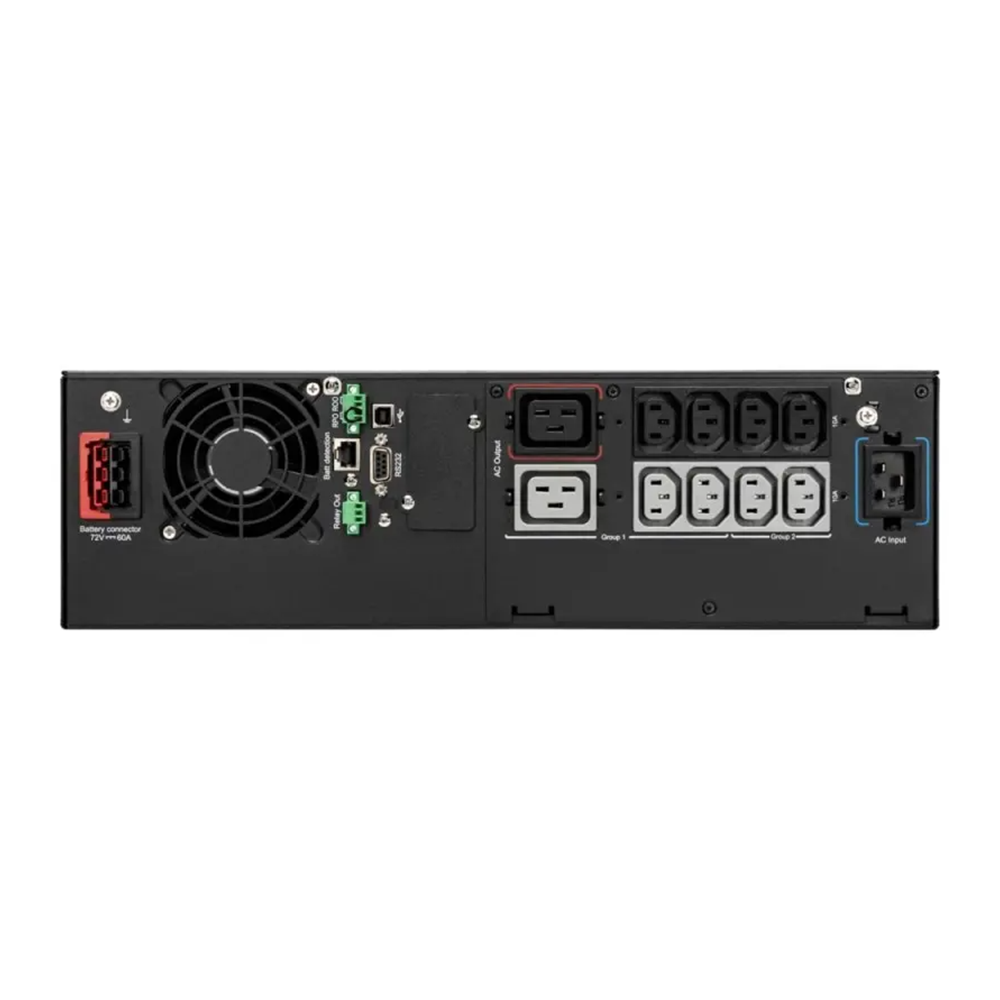

Eaton 5PX Gen2 UPS, 2200 VA, 2200 W, Input: C20, Output: (8) C13, (2) C19, Rack/tower, 3U | Eaton 5PX2200IRT3UG2
- High efficiency – 98%
- Pure sine wave – safe for devices
- Rack/Tower – flexible install
- USB/RS232 – easy monitoring
- Estimated Delivery : Up to 2-3 business days
- Free Shipping : On all orders over AED500
Key Features | EATON 5PX2200IRT3UG2
| Model | Eaton 5PX2200IRT3UG2 |
| Type | Line-interactive, Rack/Tower Convertible, 3U |
| Capacity | 2200 VA / 2200 W |
| Input Connection | IEC C20 |
| Input Voltage Range | 160–294 V (adjustable to 150–294 V) |
| Input Frequency | 47–70 Hz (50 Hz system), 56.5–70 Hz (60 Hz system), 40 Hz in low sensitivity mode |
| Output Voltage | 230 V (200/208/220/230/240 V adjustable) |
| Output Receptacles | 8 × IEC C13, 2 × IEC C19 |
| Output Waveform | Pure sine wave |
| Output Power Factor | 1 |
| Battery Type | Lead-acid, maintenance-free, user-replaceable |
| Battery Quantity | 6 × 12 V / 7 Ah |
| Runtime at Half Load | ~17 minutes |
| Efficiency at Max Load | 98% |
| Communication Ports | USB (HID compliant), RS232, DB9 dry contacts, mini-terminal blocks |
| Expansion Slot | 1 (for optional communication card) |
| Display | Multilingual graphical LCD |
| Certifications | CE, cTUVus, EAC, Cm, UKCA, ENERGY STAR certified |
| Warranty | 3 years (electronics), 2 years (battery) |
| Dimensions (W × D × H) | 438 × 483 × 129 mm |
| Weight | 27.5 kg |
