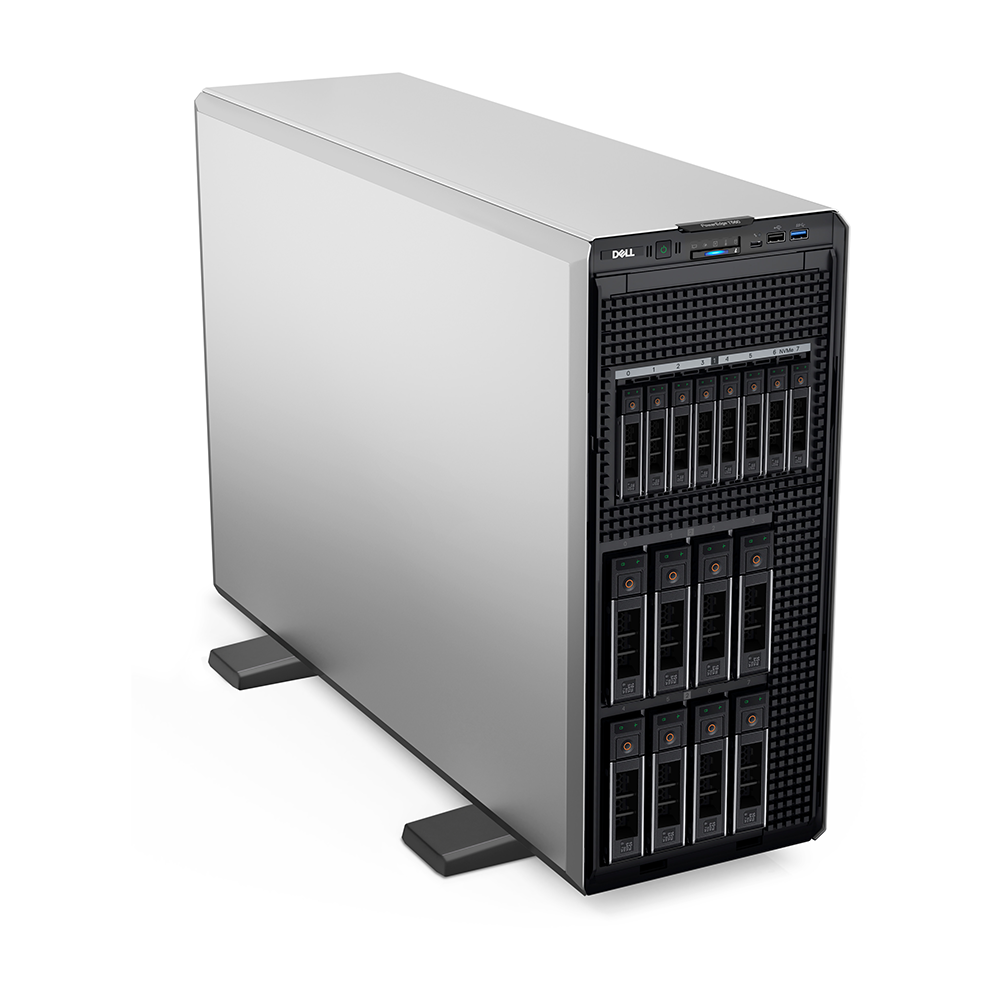

Dell PowerEdge T560 Tower Server – Dual Xeon Scalable, 1.5TB DDR5 ECC, 360TB Storage, iDRAC9 Enterprise
- Dual 4th/5th Gen Intel Xeon Scalable processors, up to 32 cores each
- 16 DDR5 DIMM slots, 1.5TB max, ECC registered memory
- Supports up to 24x 2.5″ or 12x 3.5″ drives, max 360TB
- iDRAC9 Enterprise for advanced embedded management and remote monitoring
- Estimated Delivery : Up to 2-3 business days
- Free Shipping : On all orders over AED500
Key Features | Dell PowerEdge T560
| Processor | Up to two 4th Generation Intel® Xeon Scalable processors, with up to 32 cores per processor Up to two 5th Generation Intel® Xeon Scalable processors, with up to 28 cores per processor |
| Memory | 16 DDR5 DIMM slots, supports RDIMM 1.5 TB max Speeds up to 4800 MT/s on the 4th Generation Intel® Xeon Scalable processor Speeds up to 5200 MT/s on the 5th Generation Intel® Xeon Scalable processor Supports registered ECC DDR5 DIMMs only |
| Storage Controllers | Internal PERC: fPERC H965i, fPERC H755N, fPERC H755, fPERC H355, fPERC HBA355i, HBA465i fPERC Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSD drives, or USB External HBA (non-RAID): PERC HBA355e Software RAID: S160 (for NVMe drives only) |
| Drive Bays | Front bays: • Up to 12 x 3.5-inch SAS/SATA HDD drives, max 180 TB • Up to 8 x 3.5-inch SAS/SATA HDD drives, max 120 TB • Up to 8 x 3.5-inch SAS/ SATA HDD + 8 x 2.5-inch NVMe SSD drives, max 240 TB • Up to 8 x 2.5-inch SAS/SATA HDD drives, max 120 TB • Up to 16 x 2.5-inch SAS/SATA HDD drives, max 240 TB • Up to 24 x 2.5-inch SAS/SATA HDD drives, max 360 TB |
| Power Supplies | 600 W Platinum 100-240 VAC/240 VDC 700 W Titanium 200-240 VAC/240 VDC 800 W Platinum 100-240 VAC/240 VDC 1100 W Titanium 100-240 VAC/240 VDC 1100 W DC/-48-(-60) V 1400 W Platinum 100-240 VAC/240 VDC 1400 W Titanium 100-240 VAC/240 VDC 1400 W Titanium 277 VAC/336 VDC 1800 W Titanium 200-240 VAC/240 VDC 2400 W Platinum 100-240 VAC/240 VDC 2800 W Titanium 200-240 VAC/240 VDC |
| Cooling Options | Air cooling |
| Fans | Up to eight Standard (STD) fans or High performance (HPR) fans |
| Dimensions | Height — 464.0 mm (18.26 inches) (with feet)508.8 mm (20.03 inches) (with caster wheels)446.0 mm (17.60 inches) (without feet) Width — 200.0 mm (7.87 inches) Depth — 678.2 mm (26.70 inches) (with bezel)660.6 mm (26 inches) (without bezel) |
| Form Factor | 4.5U tower server |
| Embedded Management | iDRAC9iDRAC Direct iDRAC RESTful API with Redfish iDRAC Service Module Quick Sync 2 wireless module |
| Bezel | Optional security bezel |
| OpenManage Software | OpenManage Enterprise OpenManage Power Manager plugin OpenManage Service plugin OpenManage Update Manager plugin CloudIQ for PowerEdge plug in OpenManage Enterprise Integration for VMware vCenter OpenManage Integration for Microsoft System Center OpenManage Integration with Windows Admin Center |
| Mobility | OpenManage Mobile |
| OpenManage Integrations | BMC TruesightMicrosoft System CenterOpen Manage Integration with Service NowRed Hat Ansible Modules Terraform Providers VMware vCenter and vRealize Operations Manage |
| Security | Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt)Secure Boot Secure Erase Secured Component Verification (Hardware integrity check) Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| Embedded NIC | 2 x 1GbE LOM on Planar |
| Network Options | 1 x OCP x8 card 3.0Note: The system allows both LOM on planar and OCP card to be installed on the system. |
| GPU Options | Up to 2 x 300 W DW or 6 x 75 W SW |
| Ports | Front Ports: • 1 x USB 2.0 • 1 x USB 3.0 • 1 x iDRAC Direct (Micro-AB USB) port Rear Ports: • 1 x USB 2.0 • 1 x USB 3.0 •1 x Serial port (optional) • 1 x Dedicated iDRAC (RJ45) port • 1 x VGA port • 2 x Ethernet portsInternal Ports: • 1 x USB 3.0 (optional) |
| PCIe | Up to six PCIe slots: • Slot 1: x16 Gen5 Full height, Full length • Slot 2: x16 Gen5 Full height, Full length • Slot 3: x16 Gen4 Full height, Half length • Slot 4: x16 Gen4 Full height, Half length • Slot 5: x16 (x8 lanes) Gen4 Full height, Half length • Slot 6: x16 Gen4 Full height, Half length |
| Operating System and Hypervisors | Canonical Ubuntu Server LTSMicrosoft Windows Server with Hyper-VRed Hat Enterprise LinuxSUSE Linux Enterprise ServerVMware ESXi |
| OEM-ready version available | From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. For more information, visit Dell.com -> Solutions -> OEM Solutions |
